Home / Product / Desktop instruments / Heated Thermostat Mixers

Desktop instruments

Heated Thermostat Mixers

Bioland™ CTM-100 Series Heated/Cooled Mixer/Metal Bath

The CTM-100 heated thermostat mixer integrates three functions: mixing, shaking, and incubation heating. With a brushless DC motor and microcomputer control technology, it can not only mix various microtubes, PCR plates, deep well plates and microplates, and other common laboratory consumables but also has the function of heating incubation and catalysis for various modules to meet the needs of different users.

LCD display, with a power failure recovery function, the instrument can automatically resume operation according to the original program after power failure recovery

CTM-100HCTM-100RMVM-3000V-3000V-2000V-1000VS-0102VS-0005VS-1520VS-0050VL-0150VL-0500

Message Form Contact Us

Specifications

Bioland™ CTM-100 Series Heated/Cooled Mixer/Metal Bath

Microprocessor-controlled, accurate oscillation speed, desirable mixing radius, and desirable mixing technology
Timer function for setting the incubation time from 0-100 hours
Wide choice of standard sample modules for easy replacement
Built-in temperature calibration and short oscillation jogging function
Brushless DC motor drive for long life and maintenance-free operation
Multiple safety features for safety and security

Mainframe technical parameters

Order Number

Temperature control range

Time Setting

Temperature control accuracy

Display accuracy

Temperature uniformity

Oscillation speed

Heating up speed

Amplitude of oscillation

External dimensions (mm)

Net weight

CTM-100H

Room temperature +5°C -100°C

1min-99h59min

≤±0.5℃

0.1℃

≤±0.5℃

200-1500rpm

≤12min

3mm(horizontal rotation)

305×210×195

8.6kg

CTM-100R

0℃-100℃

1min-99h59min

≤±0.5℃

0.1℃

≤±0.5℃

200-1500rpm

≤20min（decrease to room temperature 20℃）

≤10min (100°C down to 20°C)

3mm(horizontal rotation)

305×210×195

8.8kg

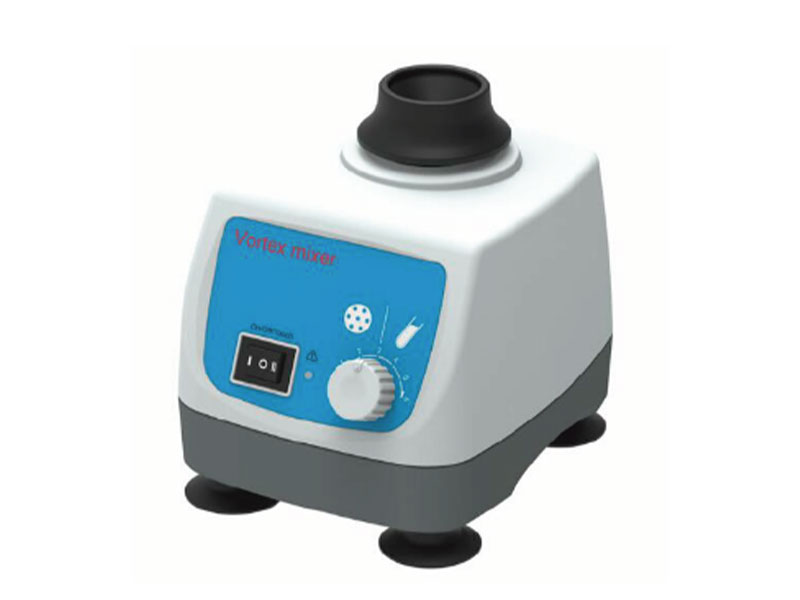

Bioland™ Vortex Mixer

The Bioland™ vortex mixer is a compact instrument for the mixing of tissues, cells, bacterial fluids, chemical reagents, etc. The mixing effect is obvious and there is no contamination of the tube contents.
Novel shape, compact size, reliable quality
Can oscillate all kinds of 0.2-50ml centrifuge tubes, other test tubes, or containers less than 30mm in diameter
High mixing speed, up to 3000 pm
External 12 V power adapter for quiet and stable operation, faster acceleration and deceleration rates
External 12V power adapter, brushless DC motor, various clamping options

Order Number	Oscillation speed	Range of oscillation	Load Capacity	Power supply	Size	Net weight
MVM-3000	0-3,000rpm	4mm (approximate circular oscillation)	0.4kg	Power adapter DC12V/1A	190X126X113mm	2.6kg

Bioland™ Vortex Mixer Accessories

Order Number	Name	Description
V-3000	Standard oscillating head	Standard; for tubes smaller than 30mm
V-2000	Standard pallets	For use with VS series adaptable gaskets
V-1000	15ml/50ml centrifuge tube trays	For use with VL series adaptable gaskets
VS-0102	VS adaptor spacer	Suitable for 0.1ml/0.2ml PCR tubes; 48 wells
VS-0005	VS adaptor spacer	Suitable for 0.5ml microcentrifuge/PCR tubes; 36-well
VS-1520	VS adaptor spacer	Suitable for 1.5ml/2.0ml microcentrifuge tubes; 16-well
VS-0050	VS adaptor spacer	Suitable for use with 5.0ml microcentrifuge tubes
VL-0150	VL series adaptable shims	Suitable for 15ml conical bottom centrifuge tubes
VL-0500	VL series adaptable shims	Suitable for 50ml conical bottom centrifuge tubes
